Discover the performance and technology that sets the CG 6012 apart from the competition
Technical Specification
- Grinding Diameter: 3-120mm
- Grinding Length: Up to 1200mm
- Precision: ±0.0015mm
- Production: up to 1000 parts/hours
- Changeover time: <5 minutes
- Multi-step capability: 5 operations
- Automation ready design
- 24/7 unmanned operation capable
- Program storage: 500+ parts
- Setup reduction: 80%
- First part approval: <3 parts
- OEE: 90%+ achievable
Unique Selling Points
Complete setup change in under 5 minutes
5 different diameters in single setup
Plug-and-play with feeding systems
Store 500+ part programs
Technical Specification
Technical Specifications
Production Capabilities
Automation Features
Power & Utilities
Dimensions & Installation
Technical Specifications
Machine Capacity
Parameter | Specification |
Min. grinding diameter | 3 mm |
Max. grinding diameter | 120mm |
Max. grinding length (infeed) | 400mm |
Max. grinding length (through-feed) | 1 200mm |
Through-feed rate | 0.5 - 20m/min |
Heavy stock removal | < 5 minutes |
Grinding Wheel Specifications
Parameter | Specification |
Wheel dimension | 610 x 300 x 304.8 mm |
Wheel speed | 1000-1500 RPM (variable) |
Spindle motor | 40 HP (30 kW) |
Quick wheel change | Hydraulic clamping |
Auto balancing | Standard |
Regulating Wheel Specifications
Parameter | Specification |
Wheel dimensions | 400 x 300 x 152.4mm |
Speed range | 10 - 250 RPM |
Drive motor | 5 HP servo |
Quick positioning | Servo preset |
Memory position | 100 |

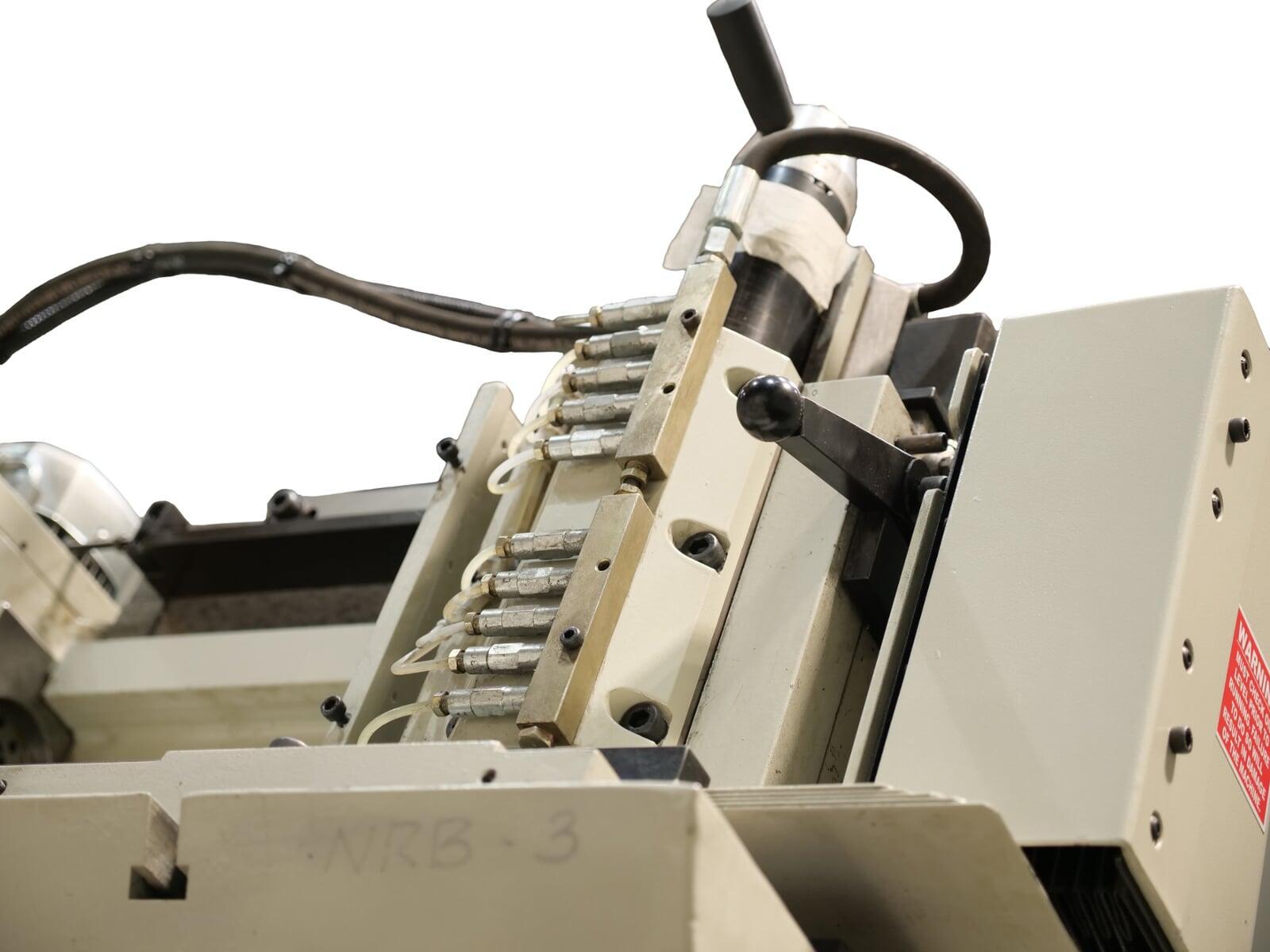

Work Rest Blade
Parameter | Specification |
Quick change design | Magnetic clamping |
Blade sets | 10 preset positions |
Change time | 30 seconds |
Repeatability | ±0.001 mm |
Machine Construction
Parameter | Specification |
Base material | Grade 25 cast iron |
Machine weight | 12,000 kg |
Thermal stability | ± 1°C control |
Vibration isolation | Active dampening |

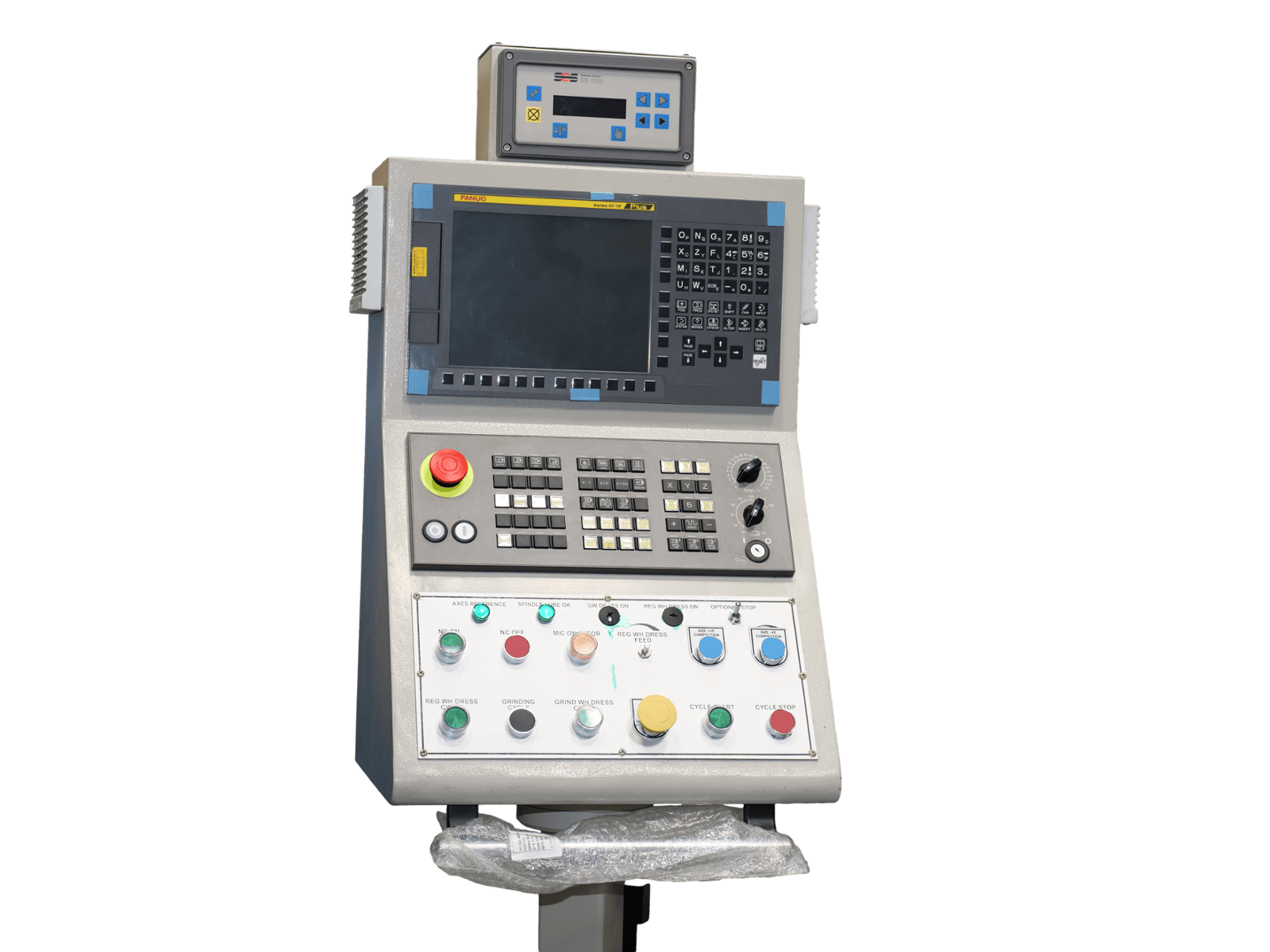

CNC Control System
Parameter | Specification |
Controller | Fanuc 31i-B |
Display | 15" touchscreen |
Programming storage | 500 + parts |
Network | Ethernet/wifi |
Data collection | Built-in- SPC |
Production Capabilities
Production Capabilities
High-Volume Performance
- Parts per hour: 100-1000 (size dependent)
- Setup parts: 1-3 parts only
- Batch flexibility: 50 to 50,000
- Unmanned runtime: 8+ hours
Multi-Step Grinding
- Steps per cycle: Up to 5
- Diameter variation: ±30mm
- Length steps: Unlimited
- Taper grinding: ±5°
- Profile grinding: Yes
Quality Consistency
- Cpk capability: >1.67
- Size variation: <0.001mm
- Surface finish: Ra 0.15-0.5 μm
- First part success: 95%+
- SPC integration: Real-time
Material Handling
- Bowl feeder: 3-50mm parts
- Magazine loader: 50-120mm
- Robot interface: Standard
- Part orientation: Automatic
- Reject handling: Segregated
Automation Features
Automation Features
Quick Changeover System
- Preset wheel positions
- Automatic blade change
- Program selection: Barcode/RFID
- Coolant adjustment: Automatic
- Parameter optimization: AI-assisted
Integrated Automation
- Bowl feeder ready
- Robot interface standard
- Vision system compatible
- Conveyor integration
- Part tracking system
Smart Features
Smart Features
- Predictive maintenance
- Process monitoring
- Quality prediction
- Efficiency tracking
- Remote access
Data Management
Data Management
- Production reports
- Quality statistics
- OEE monitoring
- Preventive maintenance
- Energy tracking
Power & Utilities
Power & Utilities
Power Requirements
Power Requirements
- Total connected load: 55 kW
- Voltage: 415V ±10%
- Frequency: 50/60 Hz
- Phase: 3-phase + neutral
- Power factor: 0.9
Compressed Air
Compressed Air
- Pressure: 6 bar
- Consumption: 120 lpm
- Quality: ISO 8573-1 Class 3

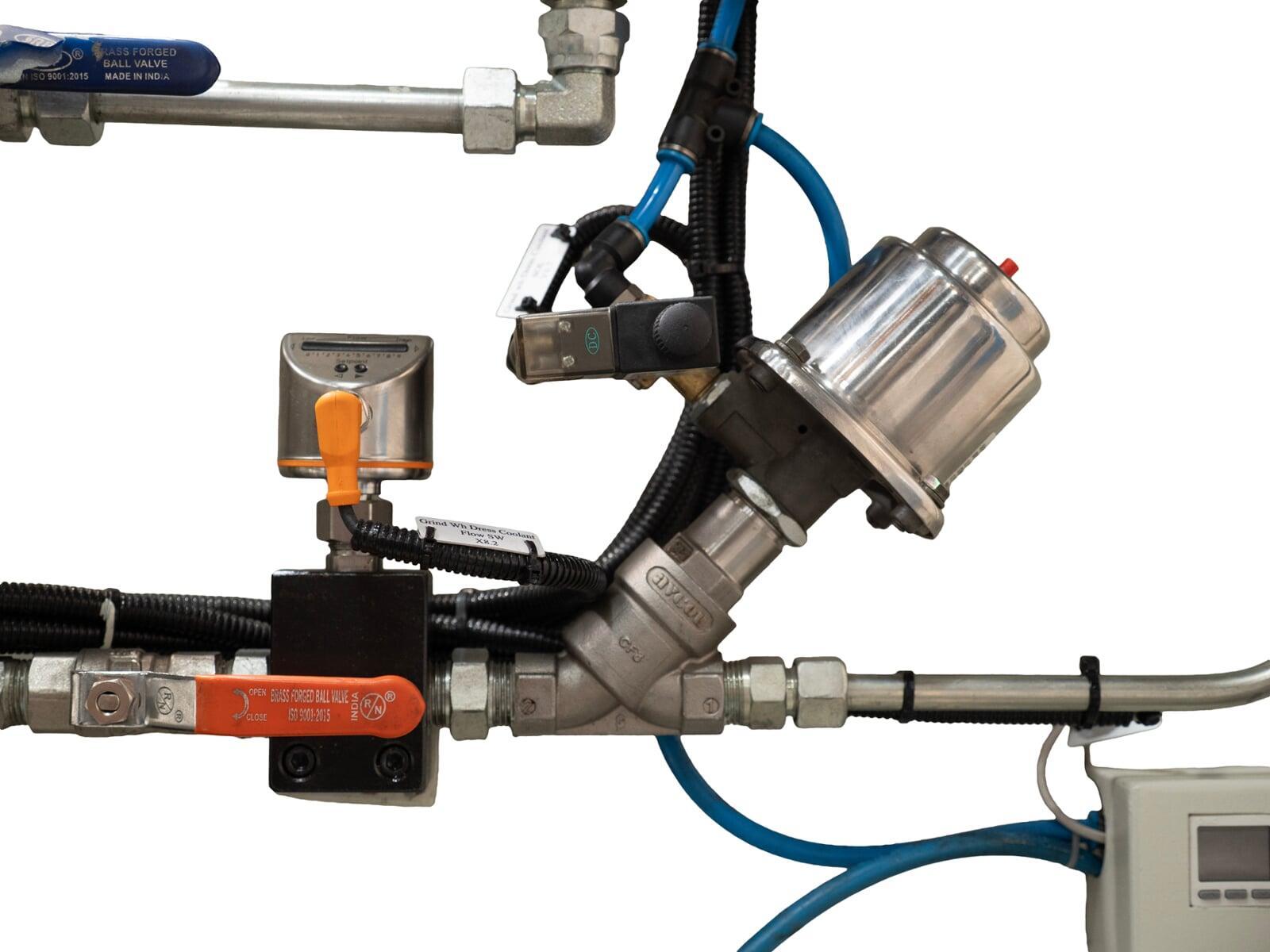

Coolant System
Coolant System
- Tank capacity: 750 liters
- Filtration: Paper + Magnetic
- Temperature control: ±0.5°C
- Concentration monitor: Auto
- Life: 6+ months
Dimensions & Installation
Dimensions & Installation
Machine Dimensions
Machine Dimensions
- Length: 4000 mm
- Width: 2200 mm
- Height: 2000 mm
- Net weight: 12,000 kg
- Gross weight: 13,000 kg
Space Requirements
- Front clearance: 1500 mm
- Rear clearance: 1000 mm
- Side clearance: 1200 mm
- Automation space: 2000 mm
- Total footprint: 20 m²
Foundation Requirements
Foundation Requirements
- Type: Reinforced concrete
- Depth: 800 mm
- Grade: M25
- Isolation: Recommended
- Leveling: ±0.02mm/m
Proven Performance Across Critical Applications
Automotive Mass Production
Critical Components:
Fuel injector parts
Valve components
Transmission pins
Sensor shafts
Bearing Industry
Critical Components:
Inner/outer races
Bearing pins
Needle rollers
Cage components
Fastener Manufacturing
Critical Components:
Socket pins
Dowel pins
Shoulder bolts
Special fasteners
Medical Components
Critical Components:
Surgical pins
Trocar components
Dental implants
Guide pins
Complete Automation Solutions for 24/7 Production
Standard Automation Interface
- Robot-ready design
- Standard communication protocols
- Plug-and-play connectivity
- Safety integration
- SCADA compatibility
Automation Packages
Entry Level - Bowl Feeder
Mid Level - Magazine Loader
Advanced - Robotic Cell
Complete Line Integration
Revolutionary 5-Minute Changeover
1. Minute 1: Select new program
2. Minute 2: Auto wheel positioning
3. Minute 3: Quick blade change (magnetic)
4. Minute 4: Coolant flow adjustment
5. Minute 5: First part ready!
Features That Enable Quick Change:
- 500+ stored programs
- Preset wheel positions
- Magnetic blade clamping
- Automatic gap setting
- Smart coolant control
- One-touch program load
Changeover Comparison
Features | CG 6012 | Conventional |
Program change | 10 seconds | 5 minutes |
Wheel position | 30 seconds | 15 minutes |
Blade change | 30 seconds | 10 minutes |
First part OK | 2 seconds | 30 minutes |
Total time | 5 seconds | 60 minutes |
Intelligence for Maximum Efficiency
1. Production Monitor
2. Predictive Maintainance
3. Quality Assurance
4. Energy Management
Expert Support for High-Volume Success
Quick Change Mastery (2 days)
Automation Integration (3 days)
Production Excellence (3 days)
