SLV/CG/400 | Laven

SLV/CG/400

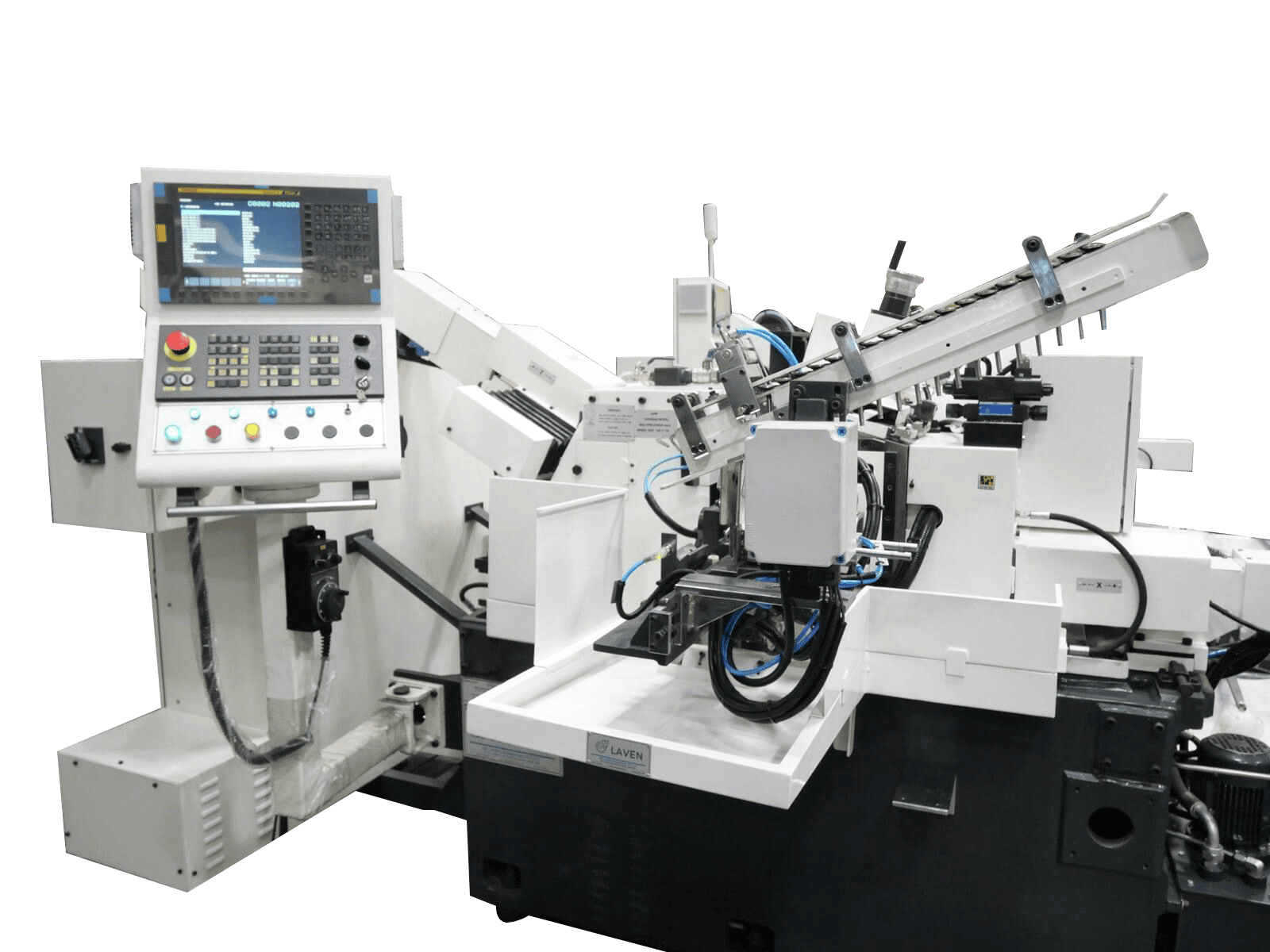

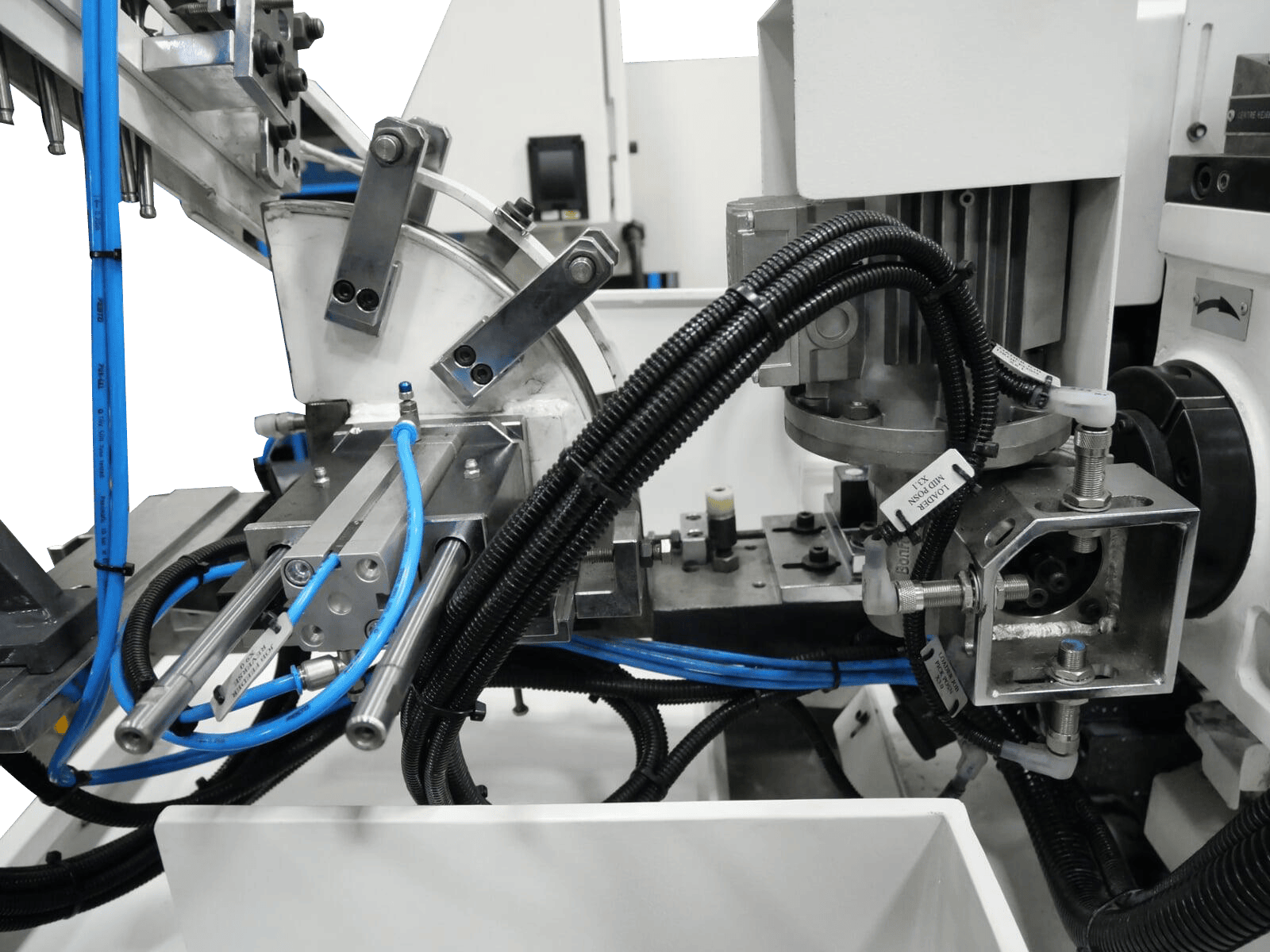

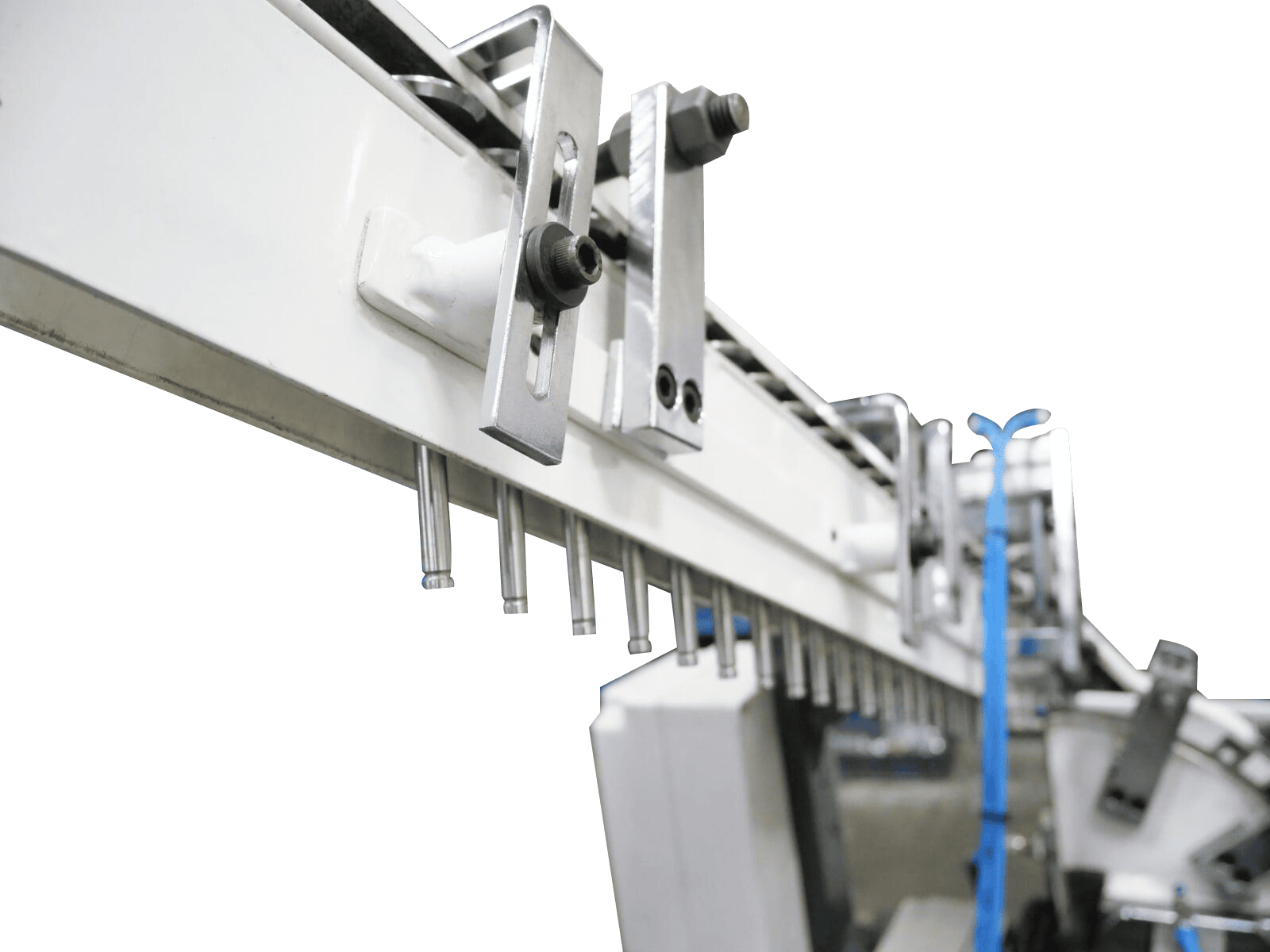

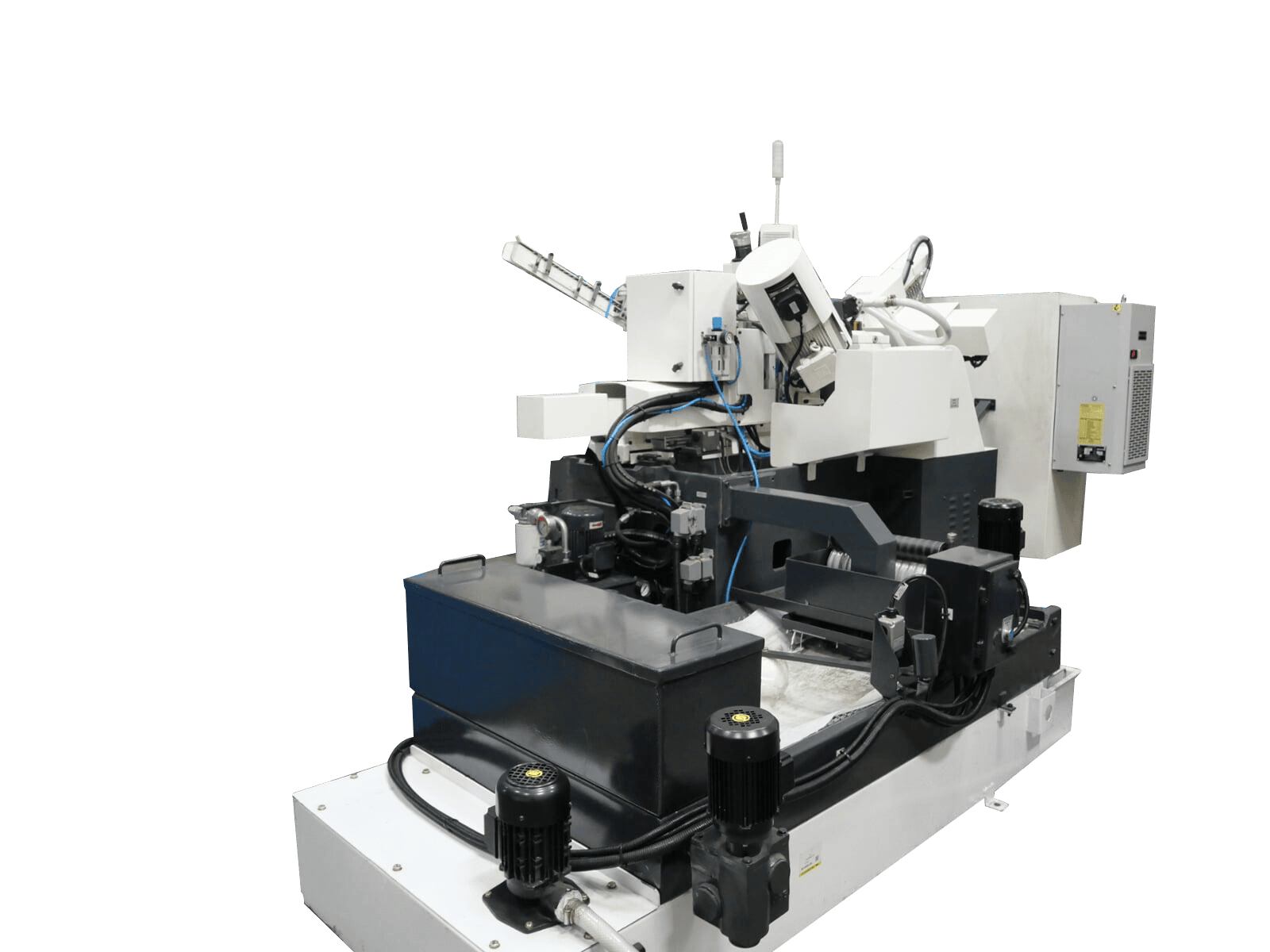

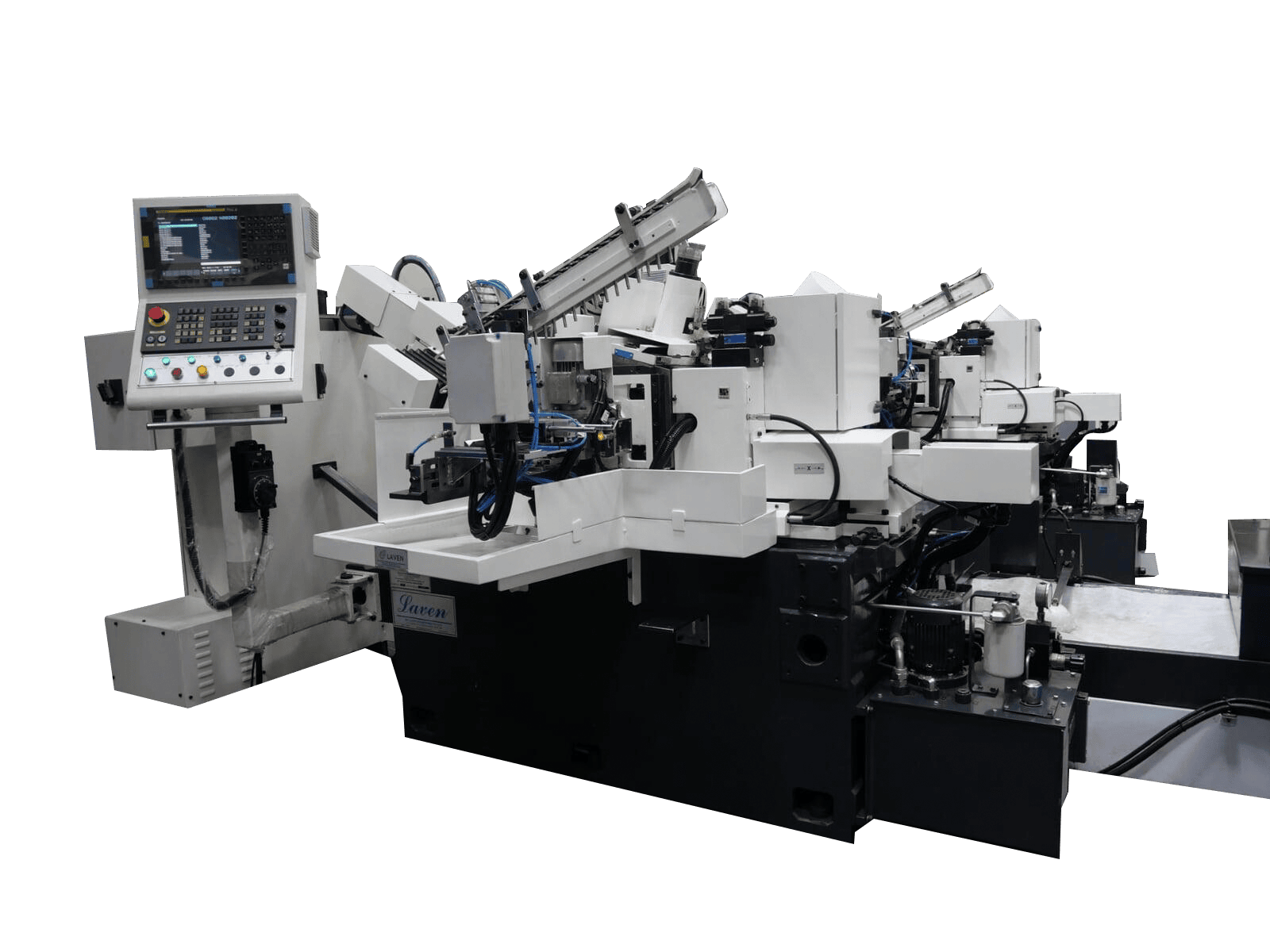

Compact and versatile, the CG 400 delivers unparalleled accuracy for smaller workpieces.

Specifications

CAPACITY
UNIT
SLV/CG/400
Min-Max Diameter
mm

Length
mm
140
Center Height
mm
185

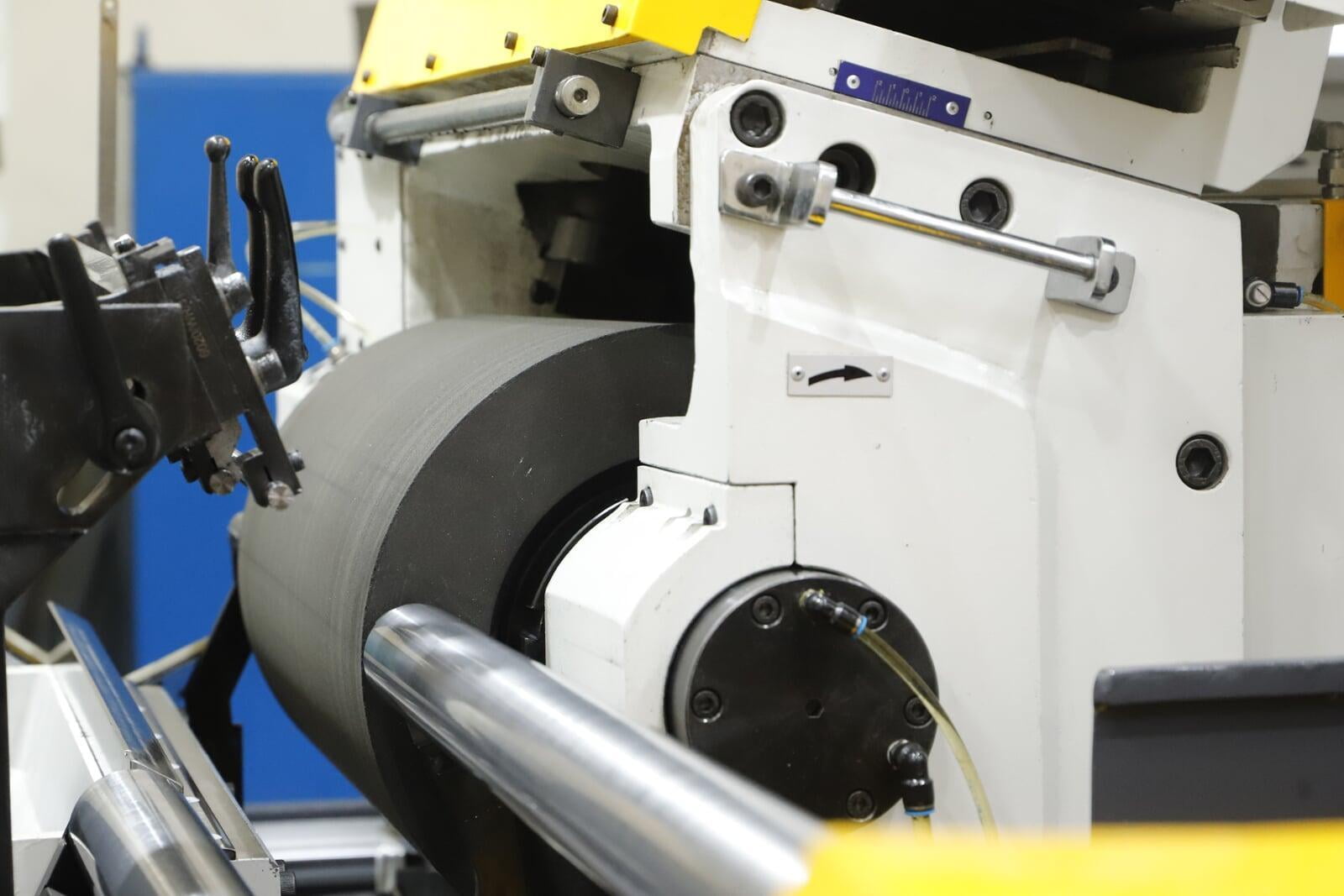

GRINDING WHEELS

OD x Width x ID
mm
Ø 406 x 150 x Ø 152.4
Minimum Diameter
mm
Ø 220
Wheel surface speed
m / sec
45
Motor Power
kw (HP)
15(20)
Grinding wheel Speed
rpm
2150

REGULATING WHEEL

OD x Width x ID
mm
Ø 225 x 150 x 101.6
Speed range
rpm
10 – 300
Regulating wheel tilting angle
degree
-3°~+5°
Motor power
kw / rpm
3.7 / 1450

IN-FEED SLIDE

In-Feed stroke
mm
150
Least Count
mm
0.001
Swivel on in-feed slide
degree
±1°
Servo motor torque
Nm
8

GRINDING WHEEL DRESSER – TRAVERSE

Slide stroke
mm
200
Least Count
mm
0.001
Servo motor torque
Nm
4

GRINDING WHEEL DRESSER – DEPTH

Slide stroke
mm
80
Least Count
mm
0.001
Servo motor torque
Nm
4

REGULATING WHEEL DRESSER – TRAVERSE

REGULATING WHEEL DRESSER – TRAVERSE

Hydraulic
Slide stroke
mm
200
Feed rate
mm / min
50 - 200

REGULATING WHEEL DRESSER – DEPTH

REGULATING WHEEL DRESSER – DEPTH

Manual Control

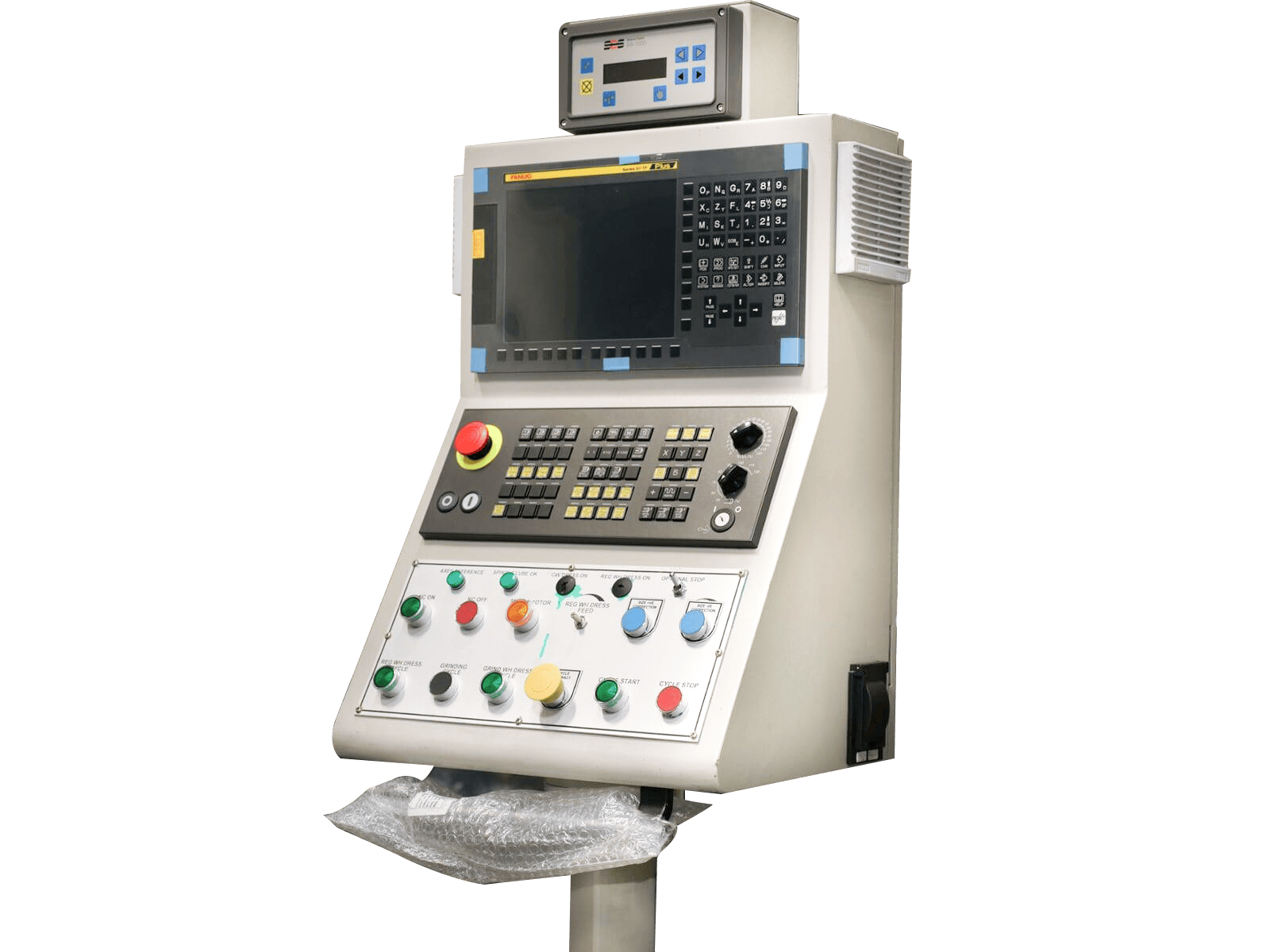

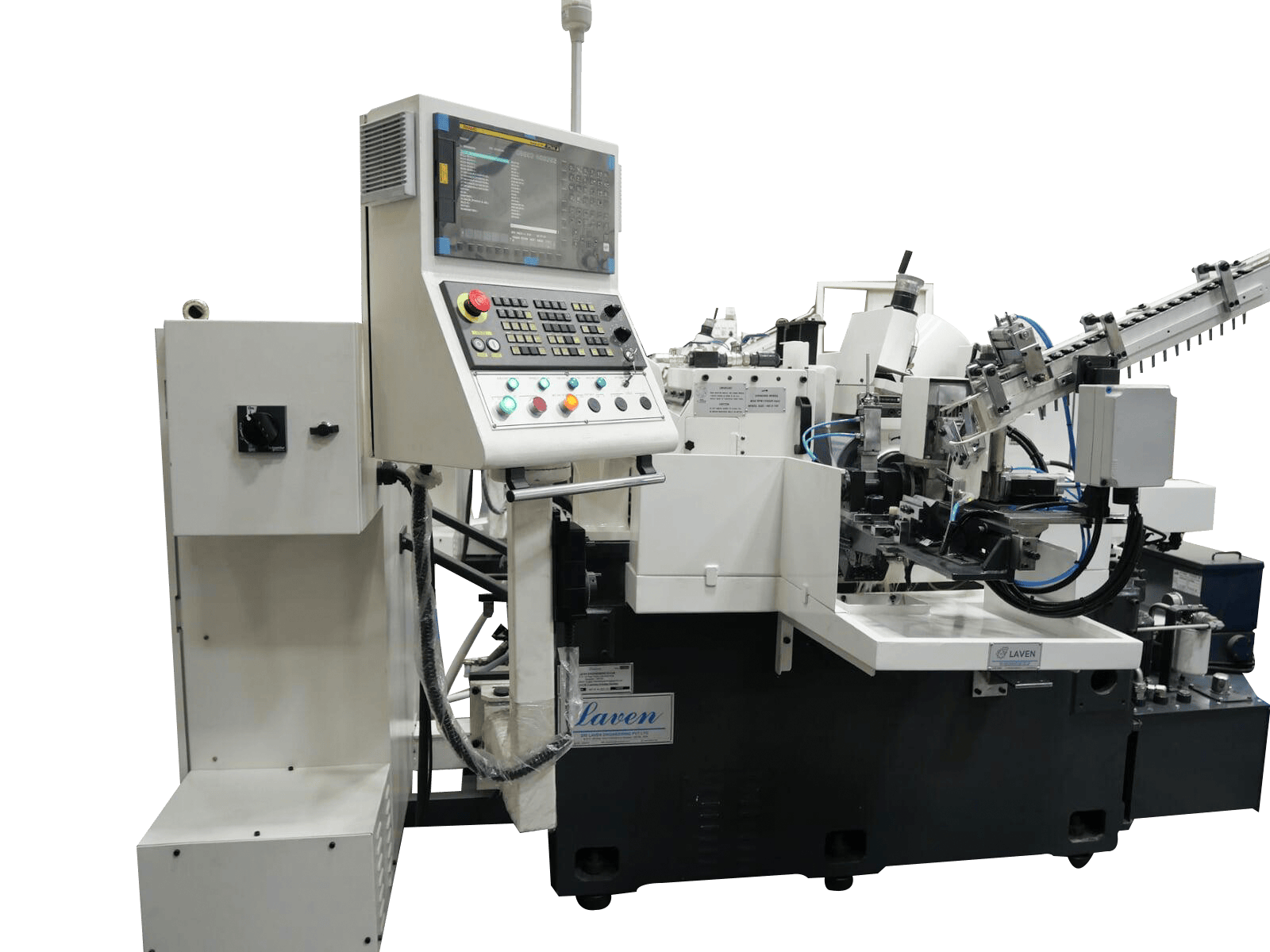

CONTROL SYSTEM (For CNC)

CONTROL SYSTEM (For CNC)

Standard

FANUC
Optional

Siemens / Mitsubishi / Allen Bradley

MACHINE SIZE

OD x Width x ID	mm	Ø 406 x 150 x Ø 152.4
Minimum Diameter	mm	Ø 220
Wheel surface speed	m / sec	45
Motor Power	kw (HP)	15(20)
Grinding wheel Speed	rpm	2150

OD x Width x ID	mm	Ø 225 x 150 x 101.6
Speed range	rpm	10 – 300
Regulating wheel tilting angle	degree	-3°~+5°
Motor power	kw / rpm	3.7 / 1450

CONTROL SYSTEM (For CNC)
Standard		FANUC
Optional		Siemens / Mitsubishi / Allen Bradley

MACHINE SIZE
L x W x H	mm
Weight	kg	Approx. 4000

Specifications

CAPACITY
UNIT
SLV/CG/400
Min-Max Diameter
mm

Length
mm
140
Center Height
mm
185

OD x Width x ID
mm
Ø 406 x 150 x Ø 152.4
Minimum Diameter
mm
Ø 220
Wheel surface speed
m / sec
45
Motor Power
kw (HP)
15(20)
Grinding wheel Speed
rpm
2150

OD x Width x ID
mm
Ø 225 x 150 x 101.6
Speed range
rpm
10 – 300
Regulating wheel tilting angle
degree
-3°~+5°
Motor power
kw / rpm
3.7 / 1450

In-Feed stroke
mm
150
Least Count
mm
0.001
Swivel on in-feed slide
degree
±1°
Servo motor torque
Nm
8

Slide stroke
mm
200
Least Count
mm
0.001
Servo motor torque
Nm
4

Slide stroke
mm
80
Least Count
mm
0.001
Servo motor torque
Nm
4

REGULATING WHEEL DRESSER – TRAVERSE

Hydraulic
Slide stroke
mm
200
Feed rate
mm / min
50 - 200

REGULATING WHEEL DRESSER – DEPTH

Manual Control

CONTROL SYSTEM (For CNC)

Standard

FANUC
Optional

Siemens / Mitsubishi / Allen Bradley

MACHINE SIZE

L x W x H
mm

Weight
kg
Approx. 4000
