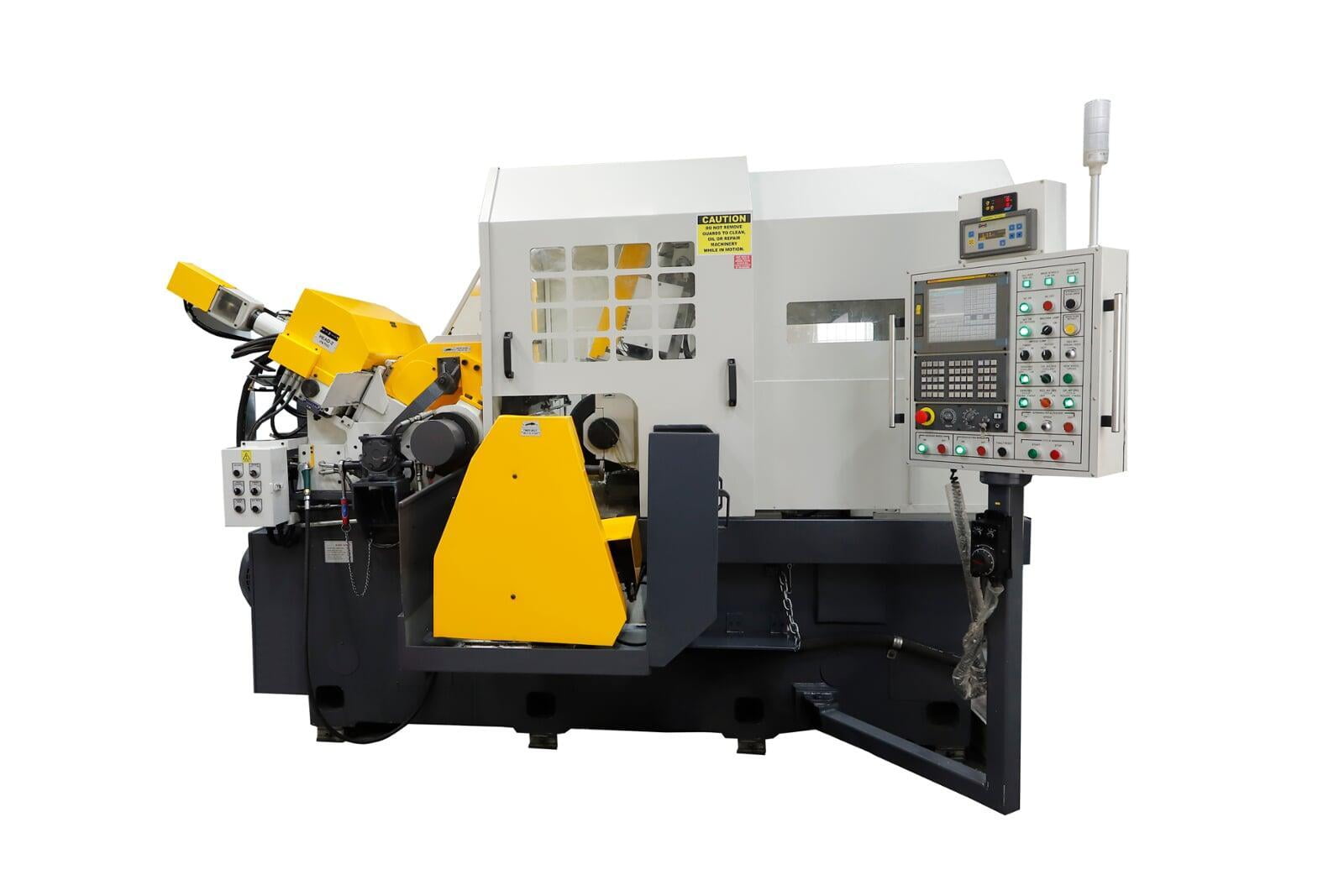

CG 6020

Introducing the world-class Laven CG 6020, the epitome of precision grinding. Crafted for versatility, it excels in both in-feed and thru-feed applications, handling cylindrical machining jobs from Ø30mm to Ø100mm with ease.

Key Features

High Precision: Engineered for tight tolerances and exceptional accuracy, the CG 6020 is the ideal choice for industries where precision is not just needed but required.
Automation: Equipped with advanced CNC systems for consistent and efficient grinding operations.
Versatility: Adept at processing a myriad of workpiece materials and shapes, the CG 6020 is your partner for a vast array of grinding tasks.

Machine Specifications

Discover the detailed specifications that make the CG 6020 a market leader.

Download Product Specification

Specifications

CAPACITY

CAPACITY
UNIT
SLV/CG/6020
Min-Max Diameter
mm
Upto 250mm
Center Height from floor
mm
1200

GRINDING WHEELS

GRINDING WHEEL

Twin Grip Spindle Construction
OD x Width x ID
mm
Ø610 x 508 xØ 304.8
Minimum Diameter
mm
Ø432
Wheel surface speed
m/ sec
45
Motor Power
kw(HP)
56(75)
Grinding wheel Speed
rpm
1410

REGULATING WHEEL

REGULATINGWHEEL

Twin Grip Spindle Construction
OD x Width x ID
mm
Ø356 x 508 x127
Speedrange
rpm
10– 300
Regulating wheel tilting angle
degree
-3°~+5°
Motorpower (servo motor)
Nm
50

IN-FEED SLIDE

IN-FEEDSLIDE

In-Feed stroke
mm
440
Least Count
mm
0.001
Swivel on in-feed slide
degree
±1°
Servo motor torque
Nm
30
Feedback system

Linear Scale (Optional)

GRINDING WHEEL DRESSER – TRAVERSE

GRINDINGWHEEL DRESSER– TRAVERSE

CNC
Slidestroke
mm
550
LeastCount
mm
0.001
Servomotor torque
Nm
4

GRINDING WHEEL DRESSER – DEPTH

GRINDINGWHEEL DRESSER– DEPTH

CNC
Slidestroke
mm
145
LeastCount
mm
0.001
Servomotor torque
Nm
4

REGULATING WHEEL DRESSER – TRAVERSE

REGULATING WHEEL DRESSER– TRAVERSE

Ball screw with Gear Motor & VFD (CNC - Optional)
Slidestroke
mm
550
Feedrate
mm/ min
50- 200

REGULATING WHEEL DRESSER – DEPTH

REGULATING WHEEL DRESSER – DEPTH

Manual (CNC Optional)

CONTROL SYSTEM (For CNC)

CONTROL SYSTEM

Standard

FANUC

(Mitsubishi/ SIEMENS Optional)

MACHINE SIZE

MACHINESIZE

L x W x H
mm
4000 x 1900 x 2040
Weight
kg
Approx.13,500

Witness the Laven CG 6020 in action

Experience Precision - Book a Demo Today

Book Demo

CAPACITY	UNIT	SLV/CG/6020
Min-Max Diameter	mm	Upto 250mm
Center Height from floor	mm	1200

GRINDING WHEEL		Twin Grip Spindle Construction
OD x Width x ID	mm	Ø610 x 508 xØ 304.8
Minimum Diameter	mm	Ø432
Wheel surface speed	m/ sec	45
Motor Power	kw(HP)	56(75)
Grinding wheel Speed	rpm	1410

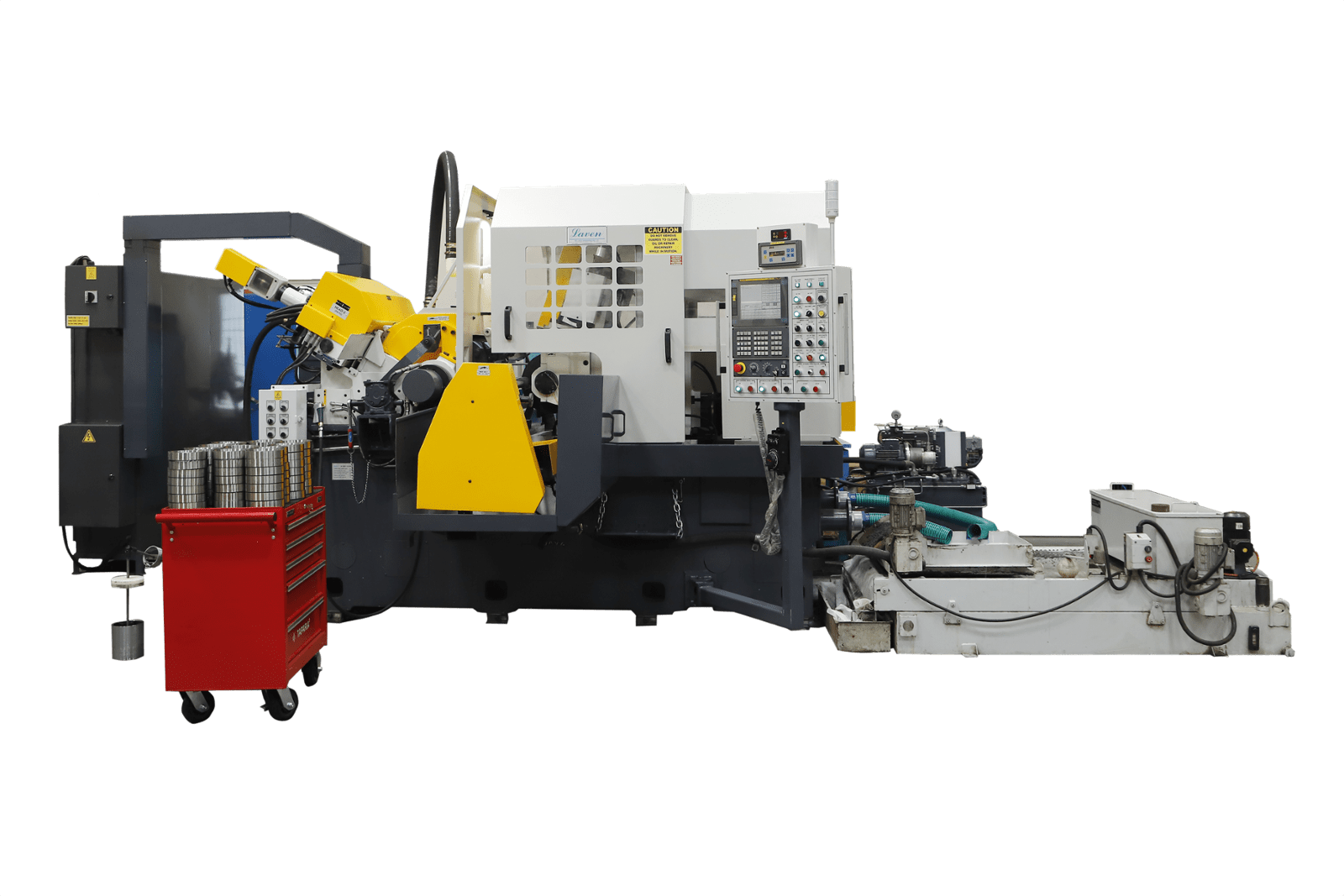

Precision Redefined - The Laven CG 6020 CNC Centerless Grinder
