CG 600

Discover the Laven CG 600, a pinnacle of bar grinding machinery, designed to deliver with precision and built to last. Ideal for a broad spectrum of cylindrical tasks.

Key Features

High Precision: Designed for creating parts with the tightest tolerances and supreme accuracy, the CG 600 serves critical industries including aerospace and medical.
Automation: Empowered by advanced CNC technology for streamlined and consistent grinding operations."
Versatility: Capable of handling diverse materials and geometries, from engine valves to complex spindles and rollers.

Visualize the efficiency and precision of the CG 600 in full operation.

Specifications

CAPACITY

CAPACITY
UNIT
SLV/CG/600
Min-Max Diameter
mm
Ø 3 – Ø 100
Length
mm
250
Center Height
mm
240

GRINDING WHEELS

GRINDING WHEEL

OD x Width x ID
mm
Ø 610 x 250 x Ø 304.8
Minimum Diameter
mm
Ø 400
Wheel surface speed
m / sec
45
Motor Power
kw (HP)
22 (30)
Grinding wheel Speed
rpm
1410

REGULATING WHEEL

REGULATING WHEEL

OD x Width x ID
mm
Ø 300 x 250 x 127
Speed range
rpm
10 – 300
Regulating wheel tilting angle
degree
-3°~+5°
Motor power
kw / rpm
3.7 / 1450

IN-FEED SLIDE

IN-FEED SLIDE

In-Feed stroke
mm
150
Least Count
mm
0.001
Swivel on in-feed slide
degree
±1°
Servo motor torque
Nm
12

GRINDING WHEEL DRESSER – TRAVERSE

GRINDING WHEEL DRESSER – TRAVERSE

CNC
Slide stroke
mm
290
Least Count
mm
0.001
Servo motor torque
Nm
4

GRINDING WHEEL DRESSER – DEPTH

GRINDING WHEEL DRESSER – DEPTH

CNC
Slide stroke
mm
100
Least Count
mm
0.001
Servo motor torque
Nm
4

REGULATING WHEEL DRESSER – TRAVERSE

REGULATING WHEEL DRESSER – TRAVERSE

Ball screw with Gear Motor & VFD
(Optional CNC Dresser)
Slide stroke
mm
290
Feed rate
mm / min
50 - 200

REGULATING WHEEL DRESSER – DEPTH

REGULATING WHEEL DRESSER – DEPTH

Manual Control
(Optional CNC Dresser)

CONTROL SYSTEM (For CNC)

CONTROL SYSTEM

Standard

FANUC
Optional

Siemens / Mitsubishi / Allen Bradley

MACHINE SIZE

MACHINE SIZE

L x W x H
mm
3150 x 1900 x 1850
Weight
kg
Approx. 6000

MAIN MACHINE DETAILS

Machine Bed

We use high strength cast iron which makes the machine bed rigid, vibration resistance and better heat resistant. The feeding mechanism adopts a swivel plate for adjustment of the job taper. All the casting parts (bed, two spindle housings, swivel plate, dressing bottom slide, dressing upper slide etc.) are treated for ageing.

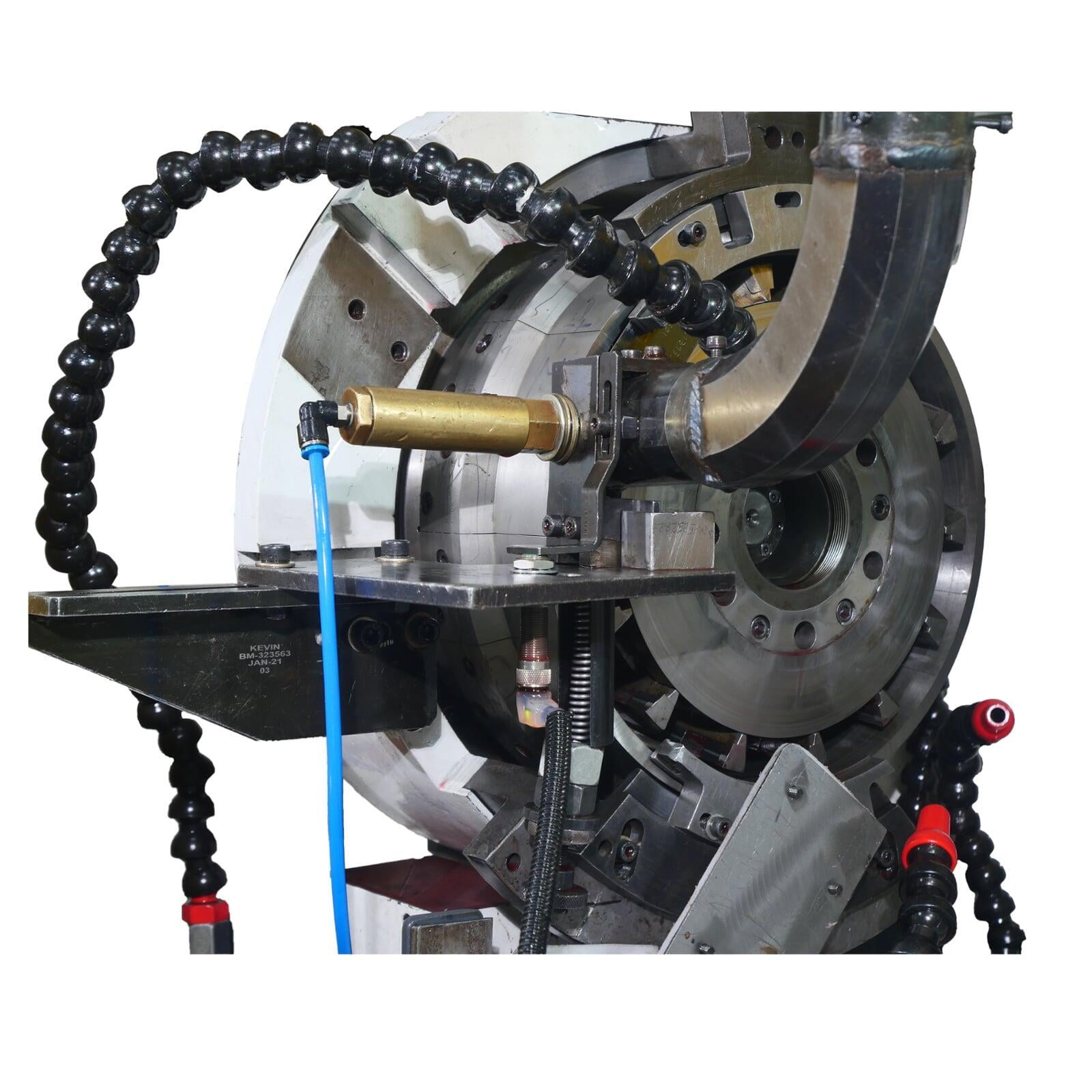

Grinding Wheel Spindle Head

The grinding wheel spindle head is mounted on top of the base. The spindle assembly consists of hydrodynamic bearings with fine adjustments and accuracy. The grinding wheel is designed to accommodate 500 Diameter grinding wheel. The grinding spindle hardness is maintained within 58-60 Hours for long life. The motor drives the grinding wheel spindle rotating via V-belt.

Regulating Wheel Spindle

The regulating wheel spindle adopts double supporting anti-friction bearings, including one pair of roller precision bearing for radial force and one pair of angular contact bearing for axial force. The reg. wheel can achieve step-less speed variation between 8 to 300 r/min by VFD. Outboard support is provided for better accuracy. The spindle hardness is maintained within 58-60Hrc for long life.

In-feed system

The In-feed system adopts two layers of slides. The upper one (regulating wheel head) adjusts to meet to grind different job dimensions and the bottom one for main in-feeding. The regulating wheel head feeding system as the main feeding system is driven by servo motor via ball screw. The feeding guide way is a linear flat guide way. Both the ball screw and linear guideway can lubricate themselves automatically with the help of auto lubrication unit which is provided along with the machine.

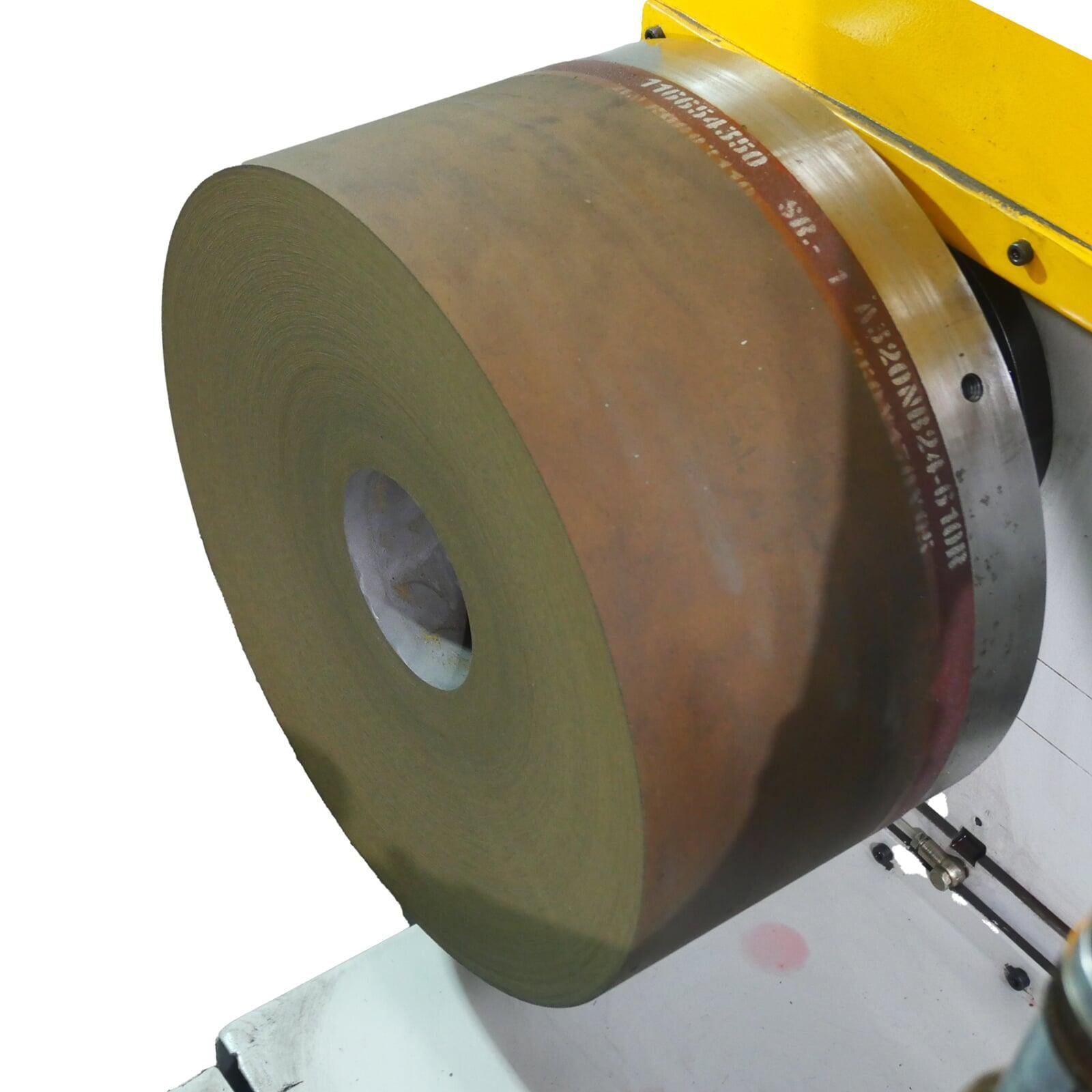

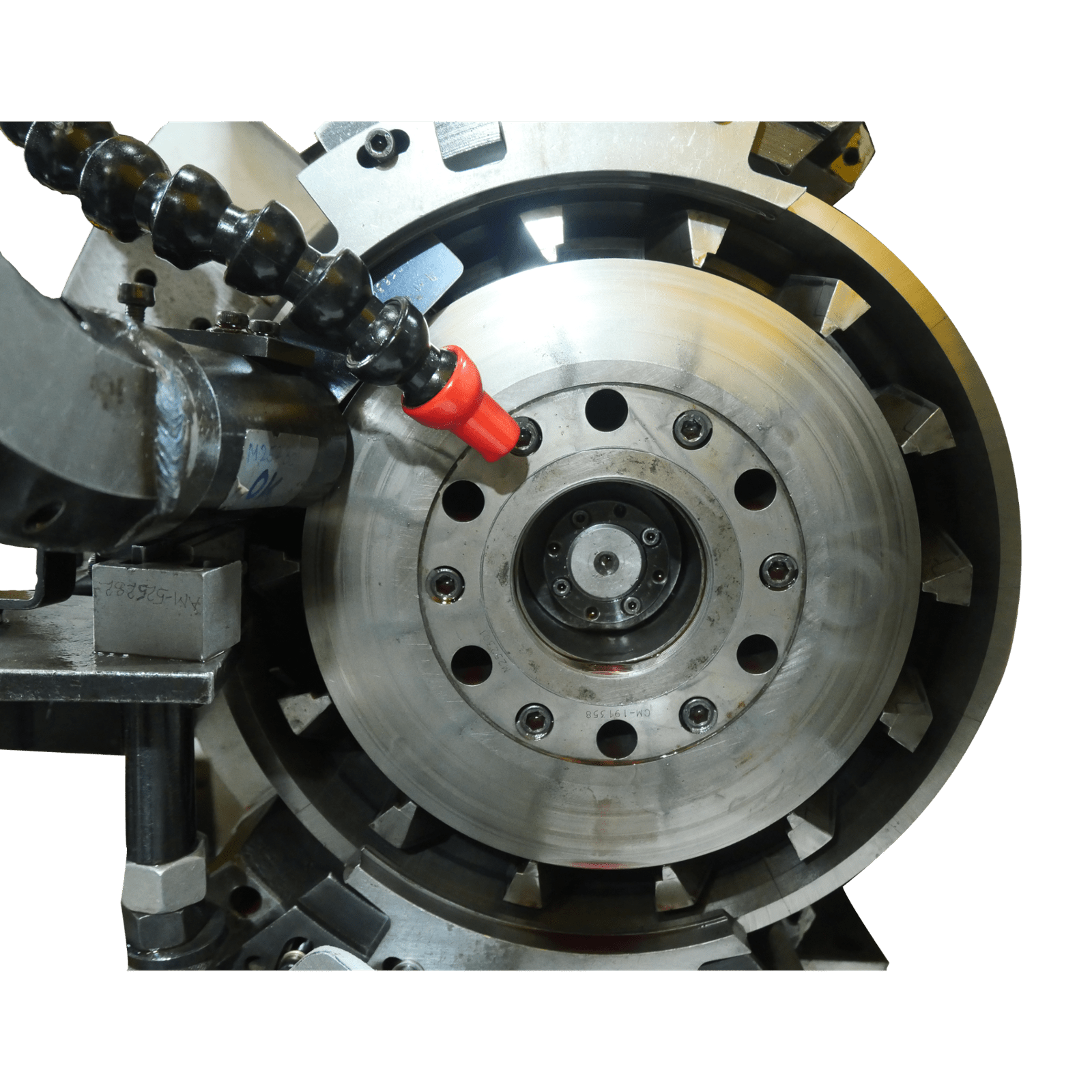

Grinding Wheel

The grinding wheel profile is dressed by rotary diamond crusher. The dressing feeding is driven by servo motors and ball screws. The real-time compensation can be achieved in the two axes of dressing feeding and reg. wheel head feeding. The compensation amount, number of times and frequency can be adjusted on the operation panel. Both the Ball screw and linear guideway can lubricate themselves automatically with the help of auto lubrication unit which is provided along with the machine.

Dual path control

Dual path control enables parallel dressing and machining feature in the machine, so that the machine is not idle during dressing of the grinding wheel and continuous production is carried out.

Experience Precision - Book a Demo Today

Book Demo
