SLVCG6012

Introducing the Laven SLVCG6012, a versatile grinder capable of handling cylindrical machining from Ø30mm to Ø100mm, perfect for both in-feed and thru-feed applications

Core Advantages

High Precision: Crafted to deliver parts with strict tolerances and supreme accuracy, meeting the needs of aerospace and medical industries.
Automation: Featuring advanced CNC control systems for reliable consistency and operational efficiency.
Versatility: Adept at various workpiece materials and shapes, the SLVCG6012 is the versatile solution your production line needs.

Specifications

CAPACITY

CAPACITY
UNIT
SLV/CG/6012
Min-Max Diameter
mm
Ø 30 – Ø 100
Length
mm
-
Center Height
mm
240

GRINDING WHEELS

GRINDING WHEEL

Twin Grip Spindle Construction
OD x Width x ID
mm
Ø 610 x 300 x Ø 304.8
Minimum Diameter
mm
Ø 400
Wheel surface speed
m / sec
45
Motor Power
kw (HP)
37 (50)
Grinding wheel Speed
rpm
1410

REGULATING WHEEL

REGULATING WHEEL

OD x Width x ID
mm
Ø 355 x 300 x 127
Speed range
rpm
10 – 300
Regulating wheel tilting angle
degree
-3°~+5°
Motor power (servo motor)
Nm
30

IN-FEED SLIDE

IN-FEED SLIDE

CNC
In-Feed stroke
mm
150
Least Count
mm
0.001
Swivel on in-feed slide
degree
±1°
Servo motor torque
Nm
22

GRINDING WHEEL DRESSER – TRAVERSE

GRINDING WHEEL DRESSER – TRAVERSE

CNC
Slide stroke
mm
330
Least Count
mm
0.001
Servo motor torque
Nm
4

GRINDING WHEEL DRESSER – DEPTH

GRINDING WHEEL DRESSER – DEPTH

CNC
Slide stroke
mm
100
Least Count
mm
0.001
Servo motor torque
Nm
4

REGULATING WHEEL DRESSER – TRAVERSE

REGULATING WHEEL DRESSER – TRAVERSE

CNC
Slide stroke
mm
330
Feed rate
mm / min
50 - 200

REGULATING WHEEL DRESSER – DEPTH

REGULATING WHEEL DRESSER – DEPTH

CNC

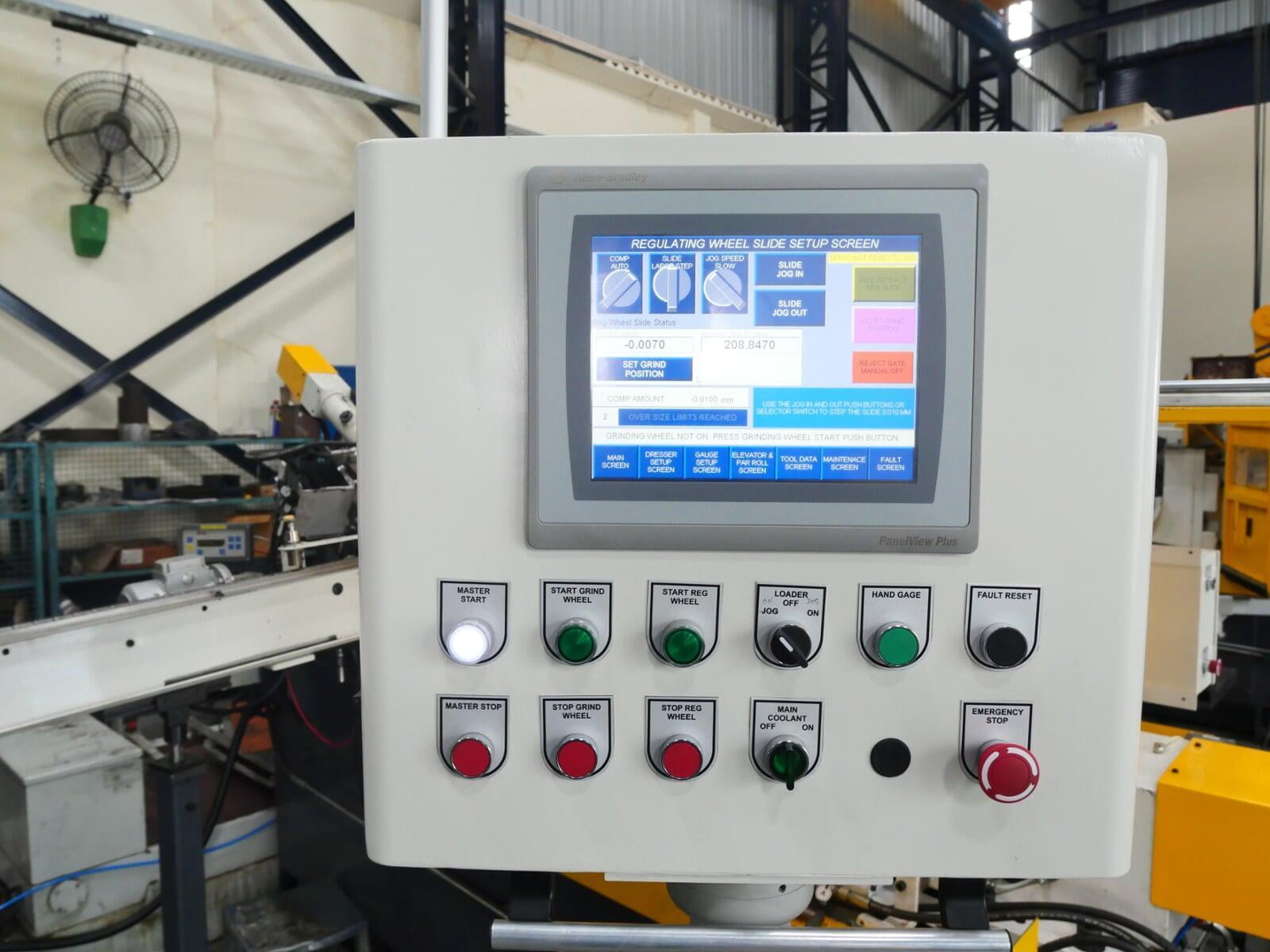

CONTROL SYSTEM (For CNC)

CONTROL SYSTEM

Standard FANUC
Optional
Mitsubishi/ SIEMENS

MACHINE SIZE

MACHINE SIZE

L x W x H
mm
3150 x 1900 x 1850
Weight
kg
Approx. 10,000

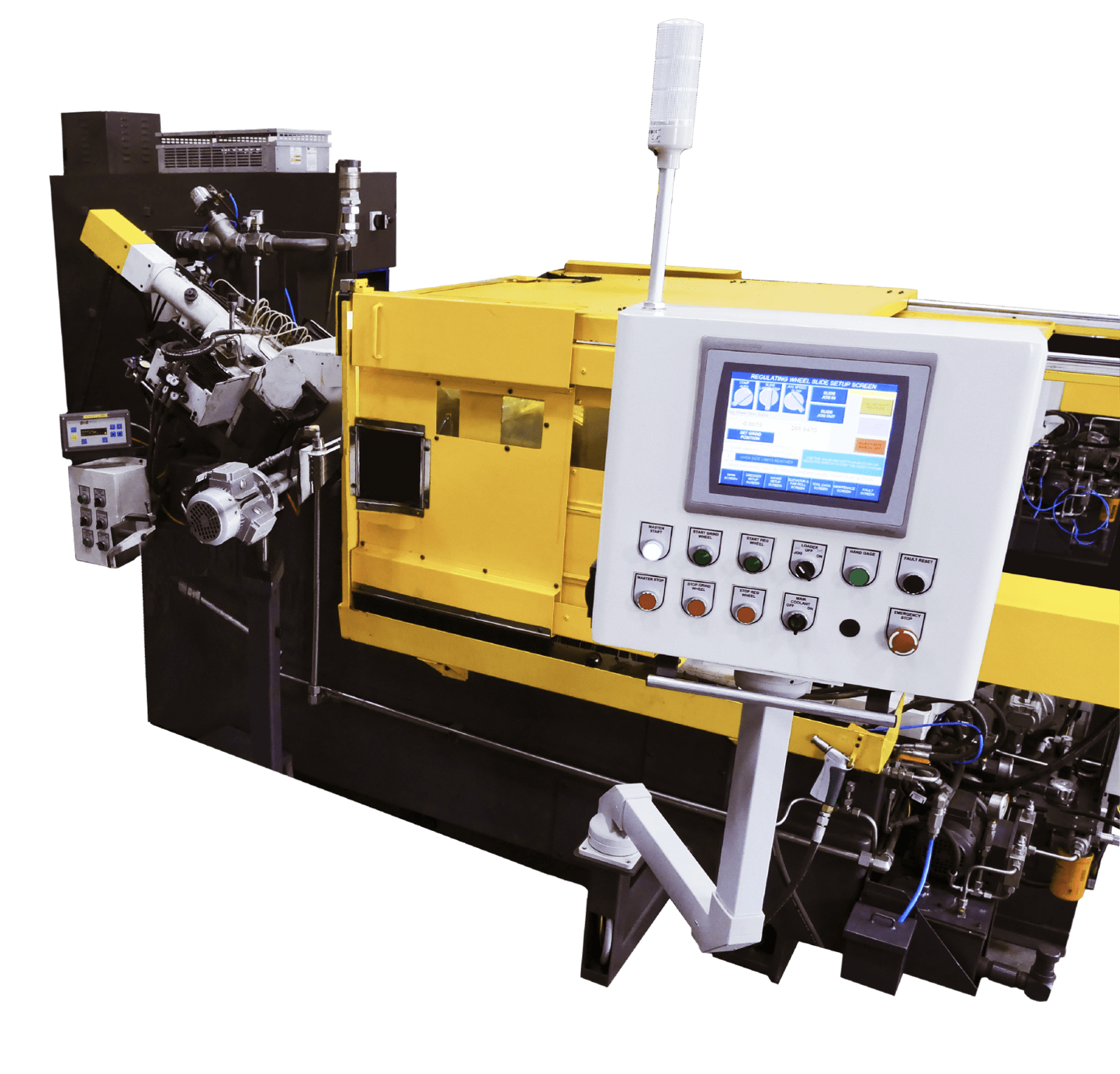

Infeed / Thrufeed Precision Centerless Grinding Machine

Laven's SLV CG 6012 Grinder is a perfect addition to your factory. Can take care of any cylindrical machining job ranging from Ø30mm to Ø100mm. This In-Feed CNC Centerless Grinder comes with a Fanuc controller.

Download Product Specification

Salient Features

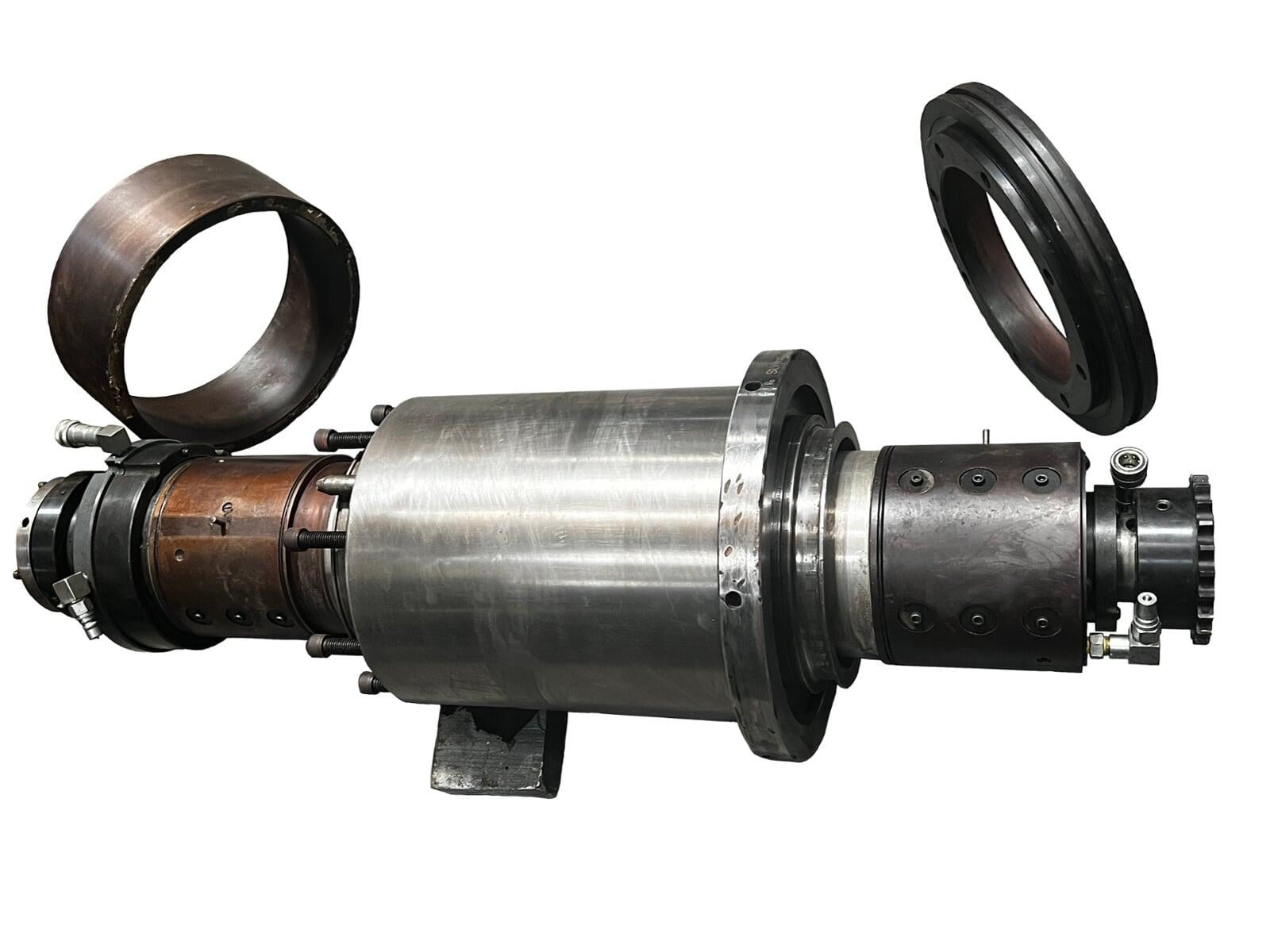

PRECISION GRINDING WHEEL SPINDLE

Ceramic coated spindle accommodates grinding wheel Ø 610mm and width 300mm. Twin grip spindle construction offers both hydro dynamic filmatic spindle or precision anti friction bearings with velocity of upto 63 m/s.

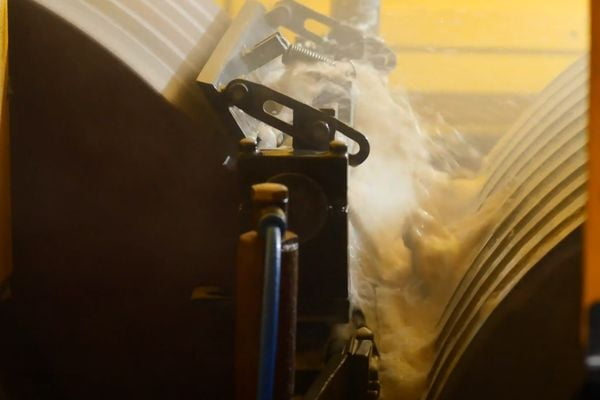

12 inch Grinding Wheel Spindle with twin grip support

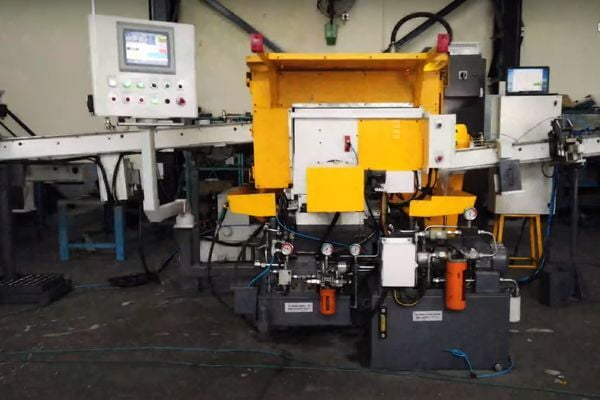

The machine bed uses high strength cast iron which makes the machine bed rigid, vibration resistance and better heat resistant. The cast iron bed weighs over 4000 Kgs.

IN FEED ASSEMBLY

Infeed slides with servo motor driven slides. Dovetail design for high rigidity and linear guideways for slides for frictionless movement.

PRECISION WHEEL DRESSING

2-axis servo driven dressing slides . Precision dressing with linear guideways for both traverse and depth.
